MX alternative solution

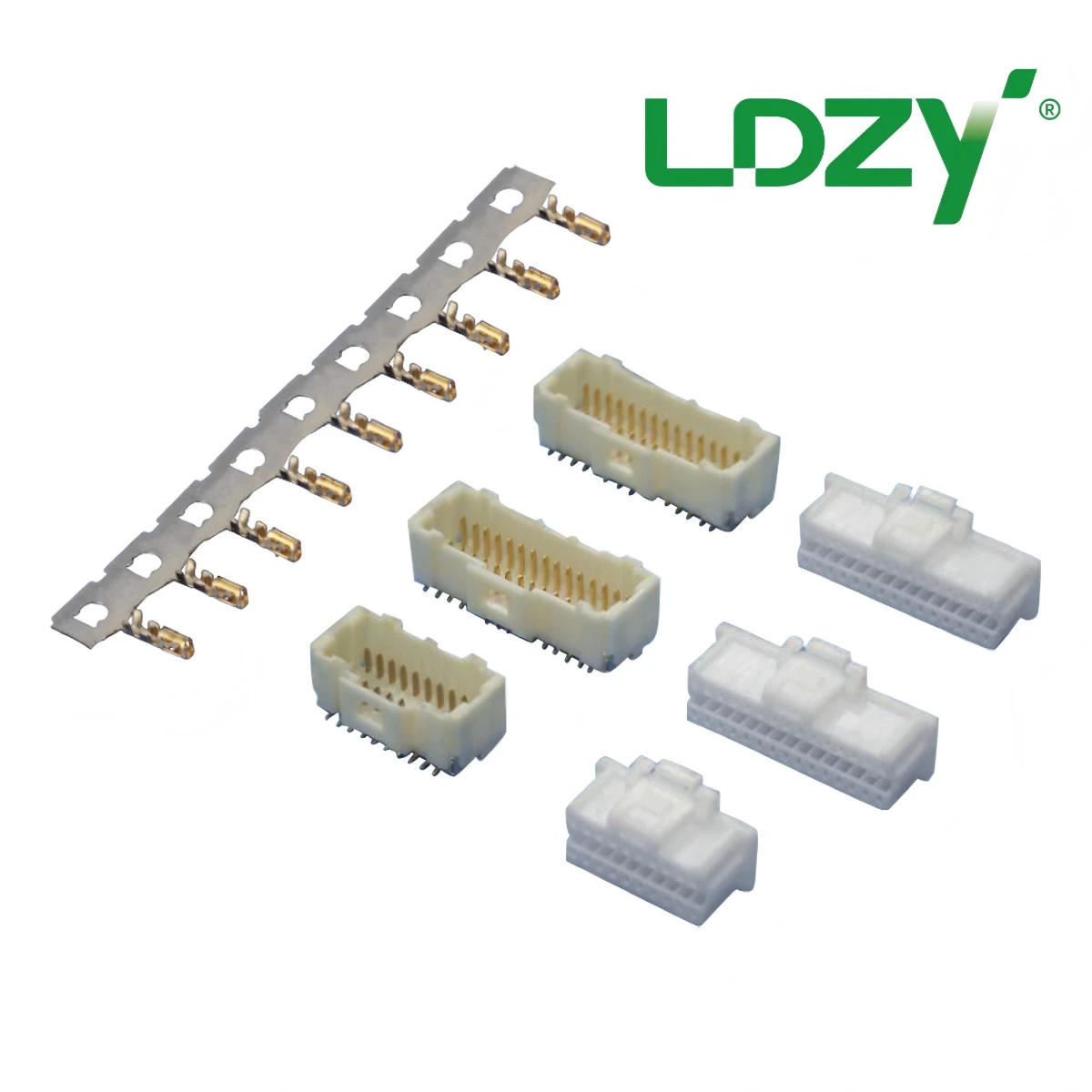

A10014
Model: A1014
Applications
trafficElectricity/Energysecuritymedical
1 / 2
1
2
Description
1.0mm pitch，wire-to-board，dual-row
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current 1A AC/DC
Voltage Rating50V AC/DC
Temperature Range-25°C~+105°C
Contact Resistance20MΩ max.
Withstanding Voltage250V AC/min.
Insulation Resistance100MΩ/min
Similar Products
More (4)
1 / 2
1
2
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current 1A AC/DC
Related Cases
Industrial servo drive | Customized multi-channel signal connector project (general high-end case)
The servo drive module from automation equipment manufacturers features the coexistence of multiple analog signals and pulse signals; strong electrical interference from frequency converters can easily cause signal distortion, and imported customized connectors are expensive and have a lengthy development cycle.
