JST alternative solution
A1500
Model: A1500
Applications
trafficElectricity/EnergysecurityindustrymedicalCommunicationconsumer electronics

1 / 2

1

2
Description

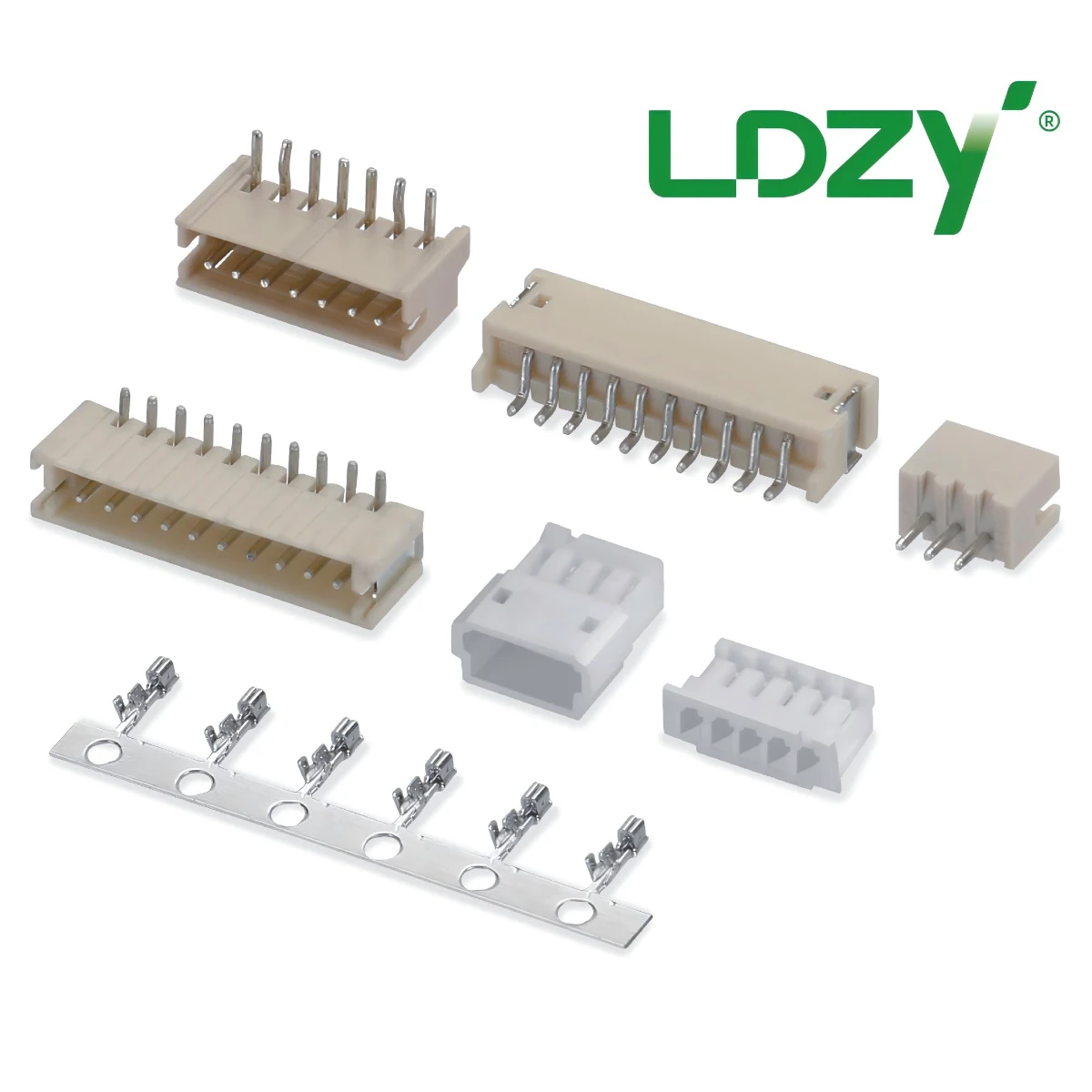

1.5mm pitch,wire-to-board,single row
Features
- 压接式端子,适合自动化线束加工
- SMT针座可过回流焊,便于大批量生产
- 符合 RoHS 环保标准
- 体积紧凑,兼顾电流与安装空间
Specifications
温度范围: -25°C~+105°C
接触电阻: 20MΩ max.
绝缘电阻: 500MΩ/min.
耐压: 500V AC/min
额定电流 1A AC/DC
电压额定值: 100V AC/DC
