JST alternative solution

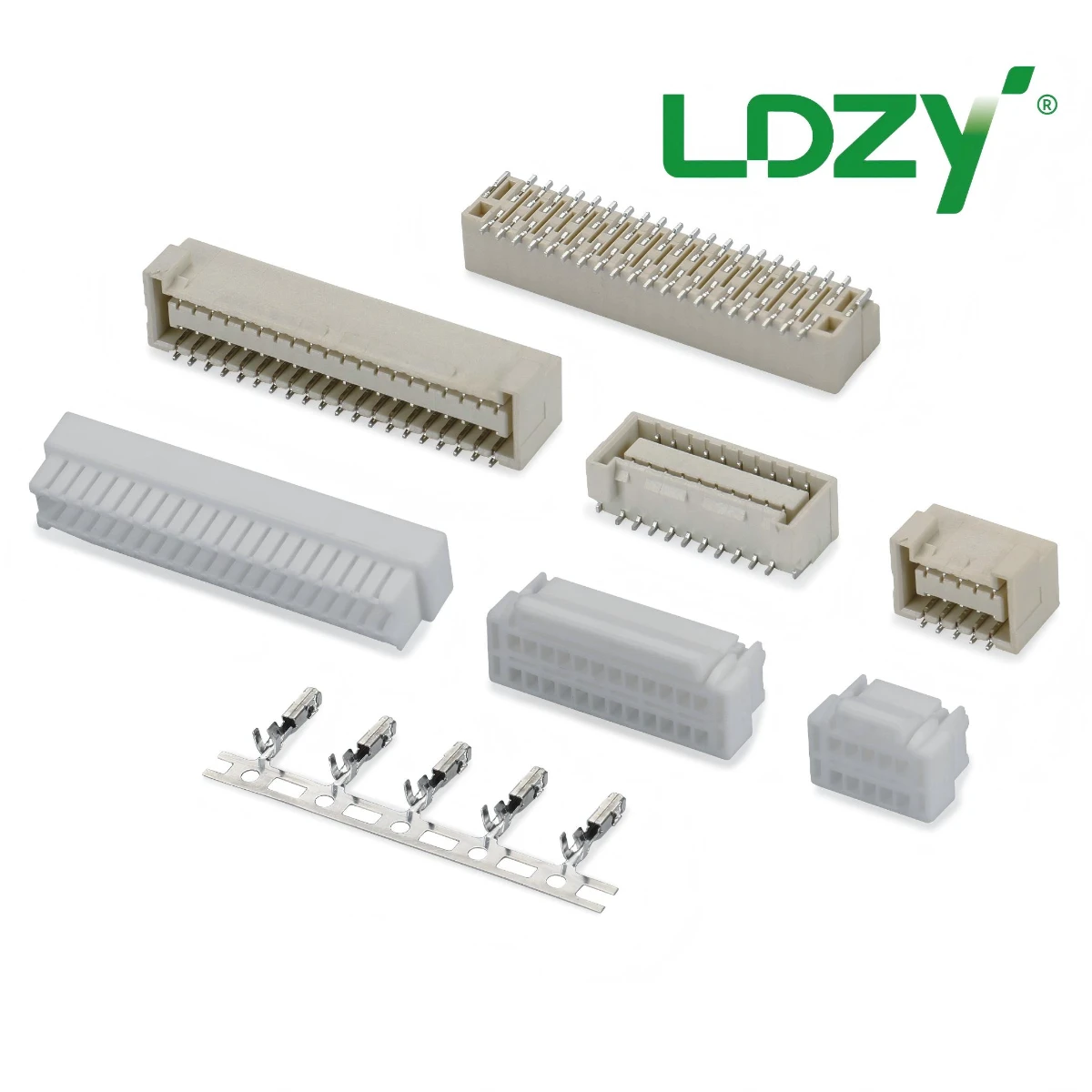

A1505
Model: A1505
Applications
trafficElectricity/EnergysecurityindustrymedicalCommunicationconsumer electronics
1 / 2
1
2
Description
1.5mm pitch，wire-to-board，dual-row
Features
- 压接式端子，适合自动化线束加工
- SMT针座可过回流焊，便于大批量生产
- 符合 RoHS 环保标准
- 体积紧凑，兼顾电流与安装空间
Specifications
接触电阻: 30MΩ max.
温度范围： -25°C~+105°C
耐压： 500V AC/min.
电压额定值: 100V AC/DC
绝缘电阻: 500MΩ/min.
额定电流 2A AC/DC（10P-30P) 1.5AAC/DC（32P-40P)
Whitepapers
Associated Products
Similar Products
More (36)
1 / 2
1
2
Features
- 压接式端子，适合自动化线束加工
- SMT针座可过回流焊，便于大批量生产
- 符合 RoHS 环保标准
- 体积紧凑，兼顾电流与安装空间
Specifications
接触电阻: 30MΩ max.
温度范围： -25°C~+105°C
Related Cases
Outdoor portable energy storage power supply BMS acquisition solution
For outdoor mobile energy storage and portable fast-charging power supplies, there is a need for both multi-channel voltage signal acquisition between the battery pack and the protection board, as well as the ability to withstand continuous charging and discharging currents. The connection reliability is highly required in high and low temperature environments, as well as during bumpy transportation
