For outdoor mobile energy storage and portable fast-charging power supplies, there is a need for both multi-channel voltage signal acquisition between the battery pack and the protection board, as well as the ability to withstand continuous charging and discharging currents. The connection reliability is highly required in high and low temperature environments, as well as during bumpy transportation

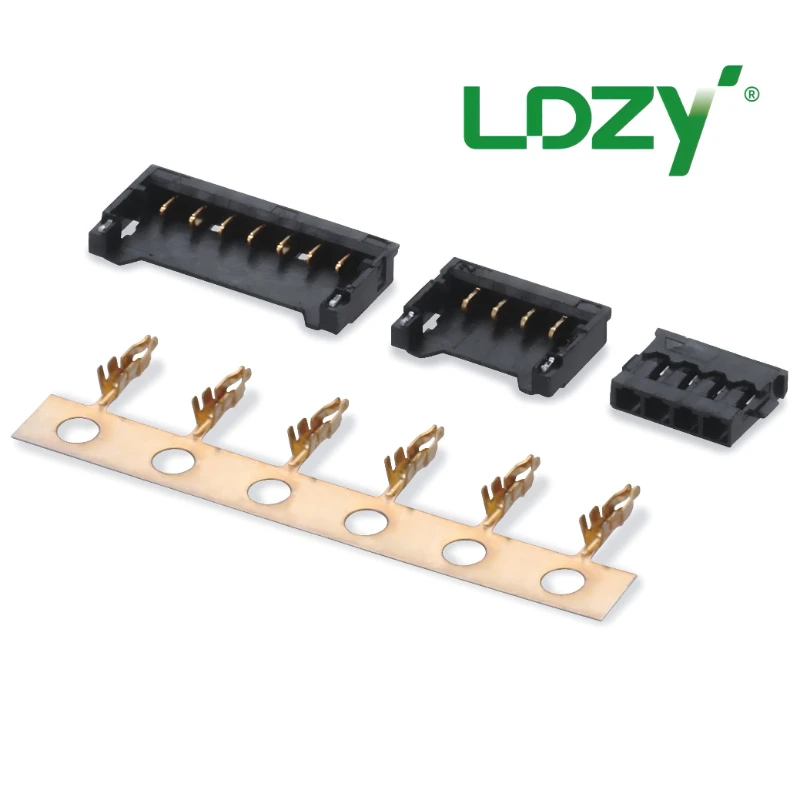

MX3.0 single-row high-current series connector; with a 3.0mm pitch, it excels in heat dissipation compared to small-pitch connectors, making it less prone to heating up; featuring a standardized wiring harness assembly, it supports multi-string lithium battery data acquisition,The product has successfully passed the charge-discharge cycle and temperature cycle tests; achieved substitution of imported connectors, resulting in a 25% reduction in overall material costs; and is now supporting the mass production of multiple portable energy storage products ranging from 200Wh to 1000Wh.
MX3.0 single-row high-current series connector; with a 3.0mm pitch, it excels in heat dissipation compared to small-pitch connectors, making it less prone to heating up; featuring a standardized wiring harness assembly, it supports multi-string lithium battery data acquisition,The product has successfully passed the charge-discharge cycle and temperature cycle tests; achieved substitution of imported connectors, resulting in a 25% reduction in overall material costs; and is now supporting the mass production of multiple portable energy storage products ranging from 200Wh to 1000Wh.
Products involved in this case
C2505
JST SM
