JST alternative solution

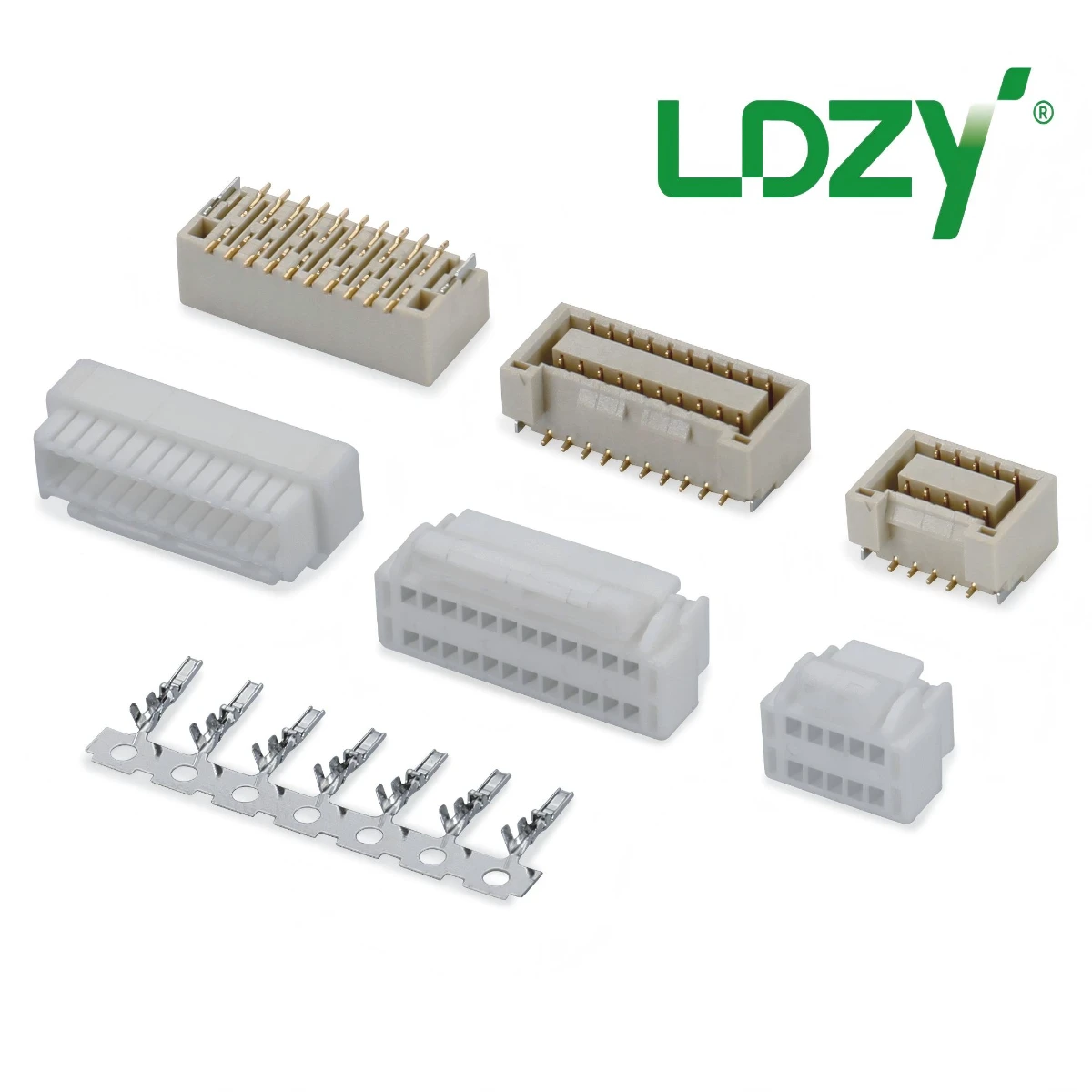

A1258
Model: A1258
Applications
trafficElectricity/Energysecurityindustry
1 / 2
1
2
Description
1.25mm pitch，wire-to-board，dual-row
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current1A AC/DC
Voltage Rating50V AC/DC
Temperature Range-25°C~+105°C
Contact Resistance50MΩ max.
Withstanding Voltage500V AC/min.
Insulation Resistance1000MΩ/min.
