JST alternative solution

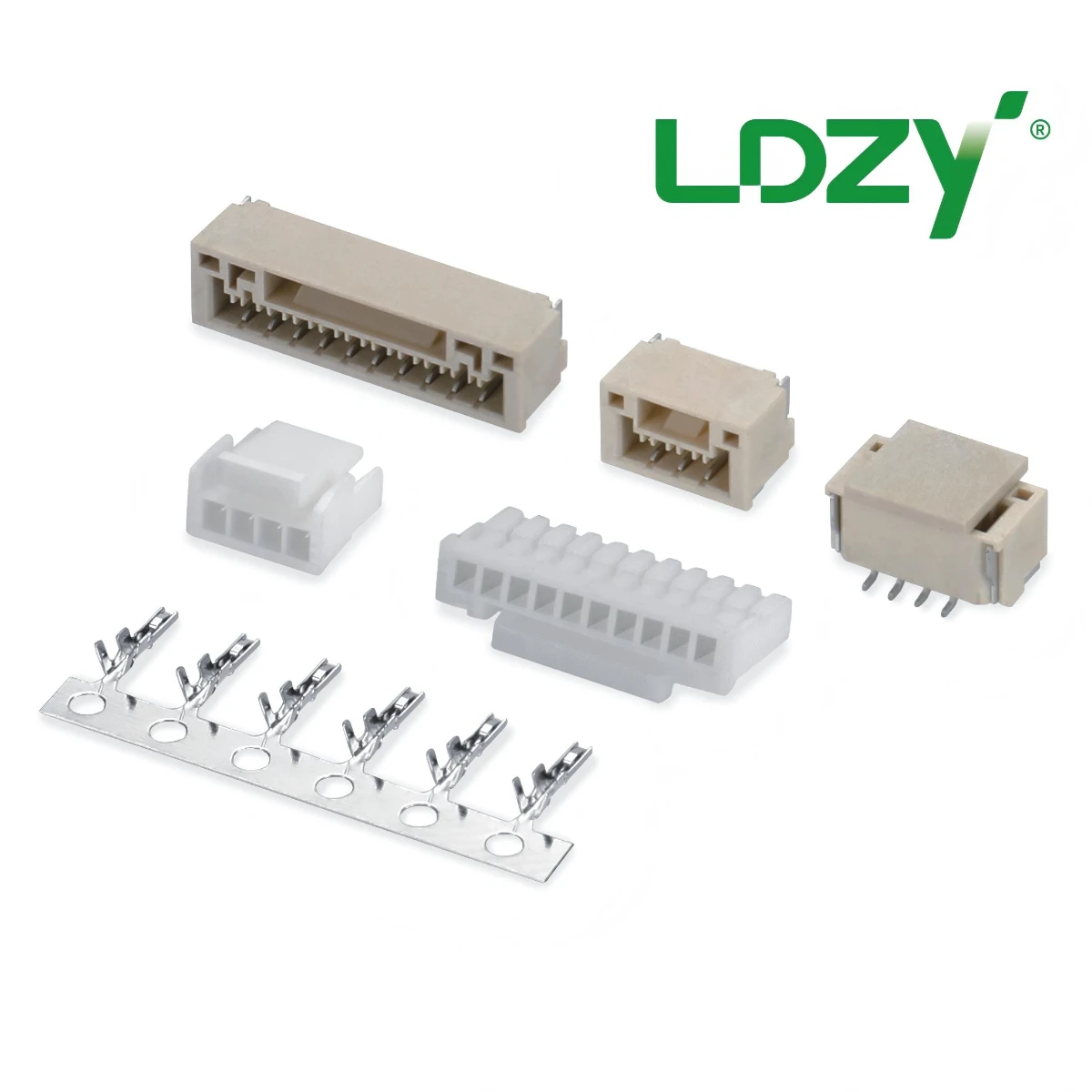

A1257
Model: A1257
Applications
trafficElectricity/EnergysecurityindustrymedicalCommunicationCarconsumer electronics
1 / 2
1
2
Description
1.25mm pitch，wire-to-board，single row
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current1A AC/DC
Voltage Rating50V AC/DC
Temperature Range -25°C~+85°C
Contact Resistance30MΩ max.
Withstanding Voltage500V AC/min.
Insulation Resistance100MΩ/min.
Associated Products
Similar Products
More (36)
1 / 2
1
2
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current1A AC/DC
Voltage Rating
