MX alternative solution
A1503
Model: A1503
Applications
trafficElectricity/Energysecurityindustry
1 / 2
1
2
Description

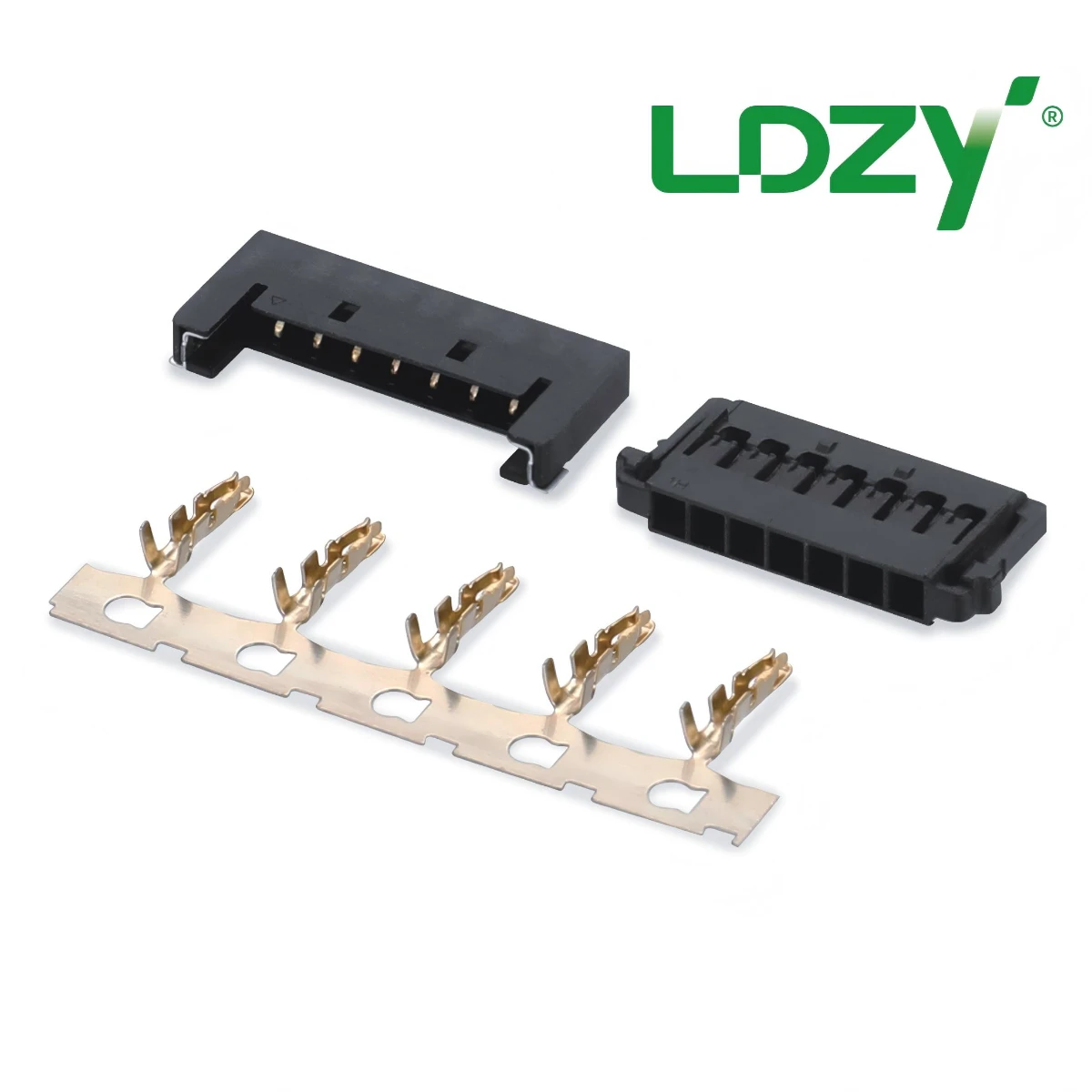

1.5mm pitch，wire-to-board，single row
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current3A AC/DC
Voltage Rating 150V AC/DC
Temperature Range-25°C~+105°C
Contact Resistance20MΩ max.
Withstanding Voltage 500V AC/min.
Insulation Resistance 1000MΩ/min.
