JST alternative solution

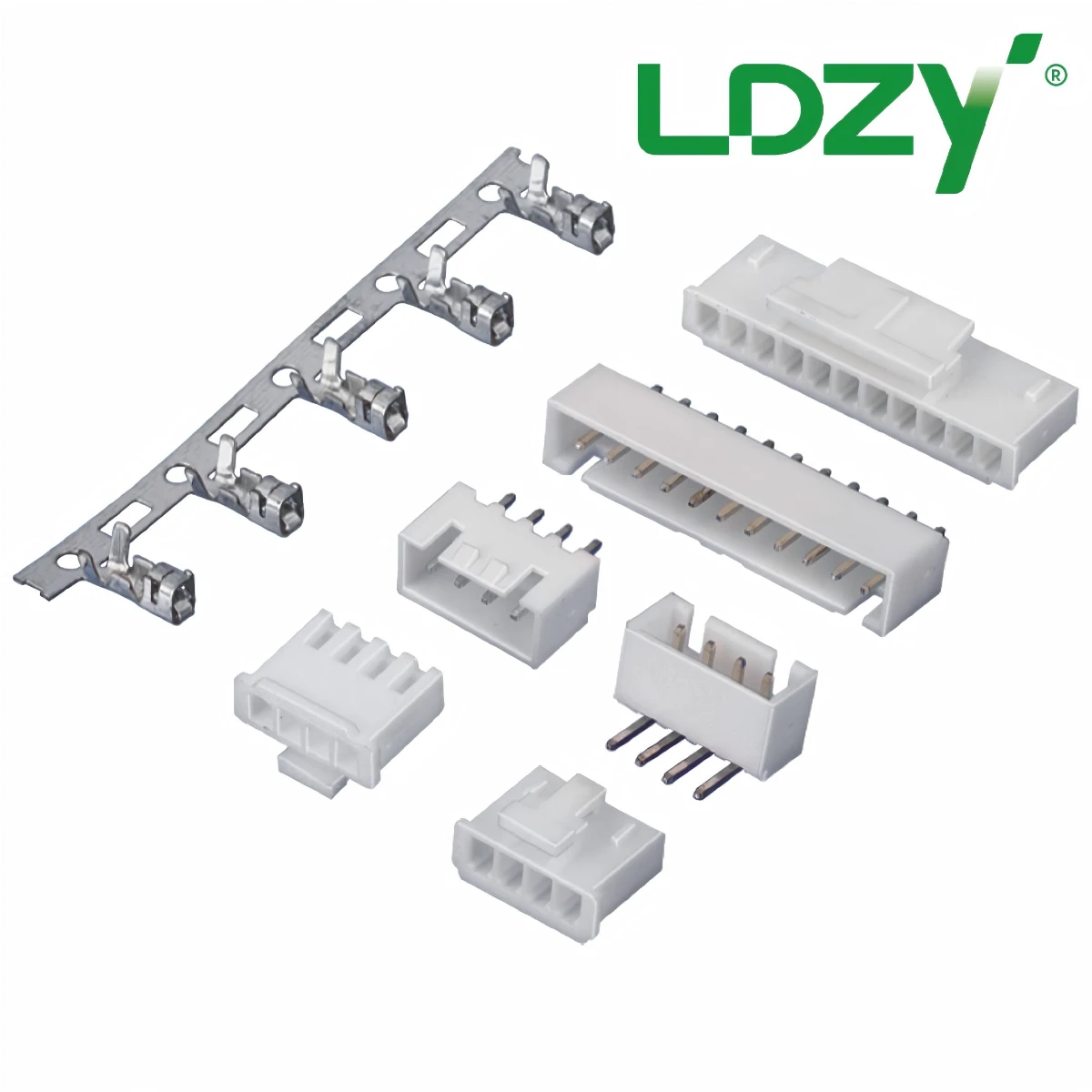

A2515
Model: A2515
Applications
trafficElectricity/Energysecurityindustry
1 / 2
1
2
Description
2.5mm pitch，wire-to-board，single row
Features
- Crimp terminals, suitable for automated wire harness processing
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current3A AC/DC
Voltage Rating250V AC/DC
Temperature Range-25°C~+105°C
Contact Resistance10MΩ max.
Withstanding Voltage1000V AC/min.
Insulation Resistance1000MΩ/min.
Similar Products
More (4)
1 / 2
1
2
Features
- Crimp terminals, suitable for automated wire harness processing
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current3A AC/DC
Voltage Rating250V AC/DC
Temperature Range
