JST alternative solution

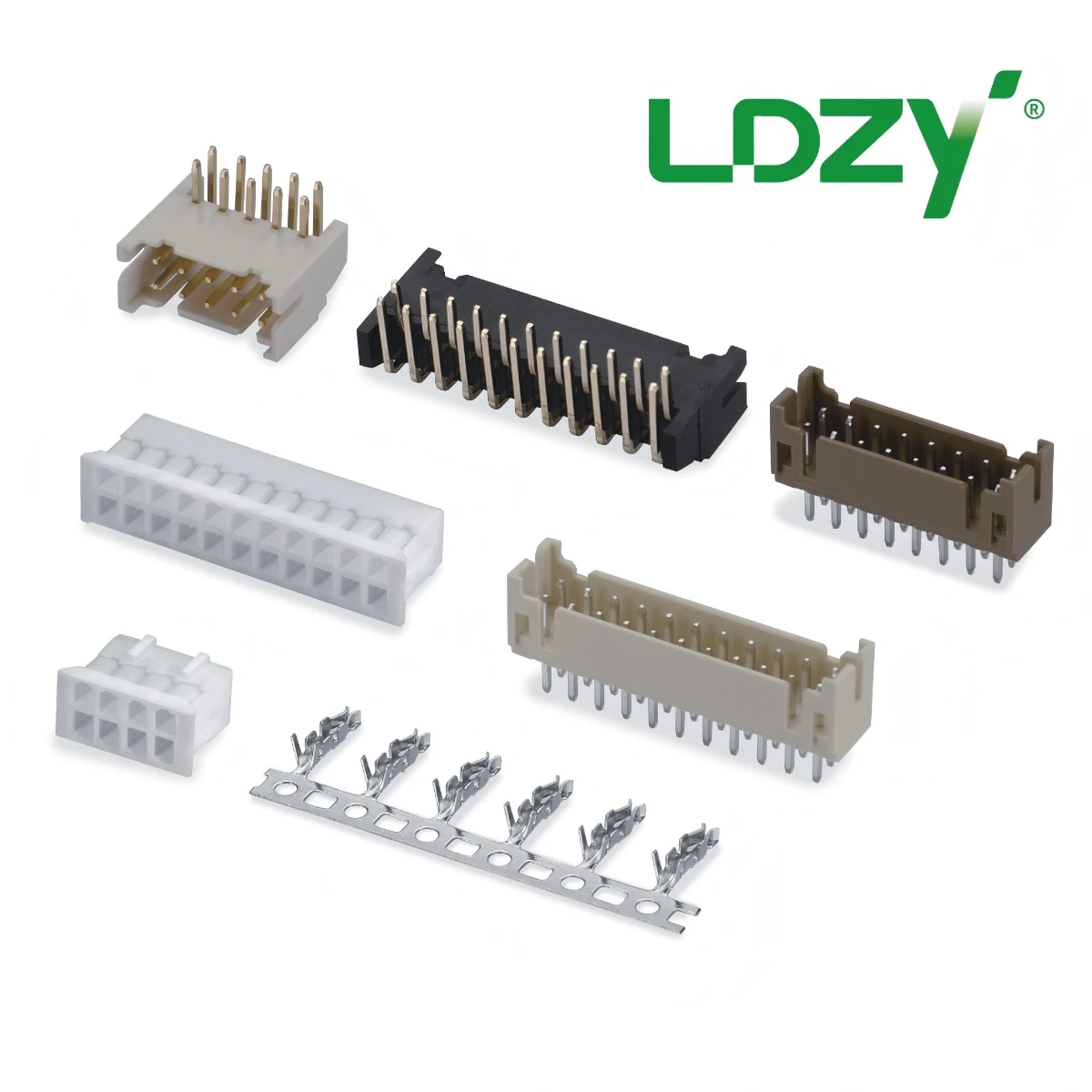

A2004
Model: A2004
Applications
trafficElectricity/Energysecurityindustry
1 / 2
1
2
Description
2.0mm pitch，wire-to-board，dual-row
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current3A AC/DC
Voltage Rating 250V AC/DC
Temperature Range-25°C~+105°C
Contact Resistance10MΩ max.
Withstanding Voltage800V AC/min.
Insulation Resistance1000MΩ/min.
Associated Products
Similar Products
More (4)
1 / 2
1
2
Features
- Crimp terminals, suitable for automated wire harness processing
- SMT headers can withstand reflow soldering, suitable for mass production
- Compliant with RoHS environmental standards
- Compact size, balancing current capacity and installation space
Specifications
Rated Current3A AC/DC
