JST alternative solution
A4000

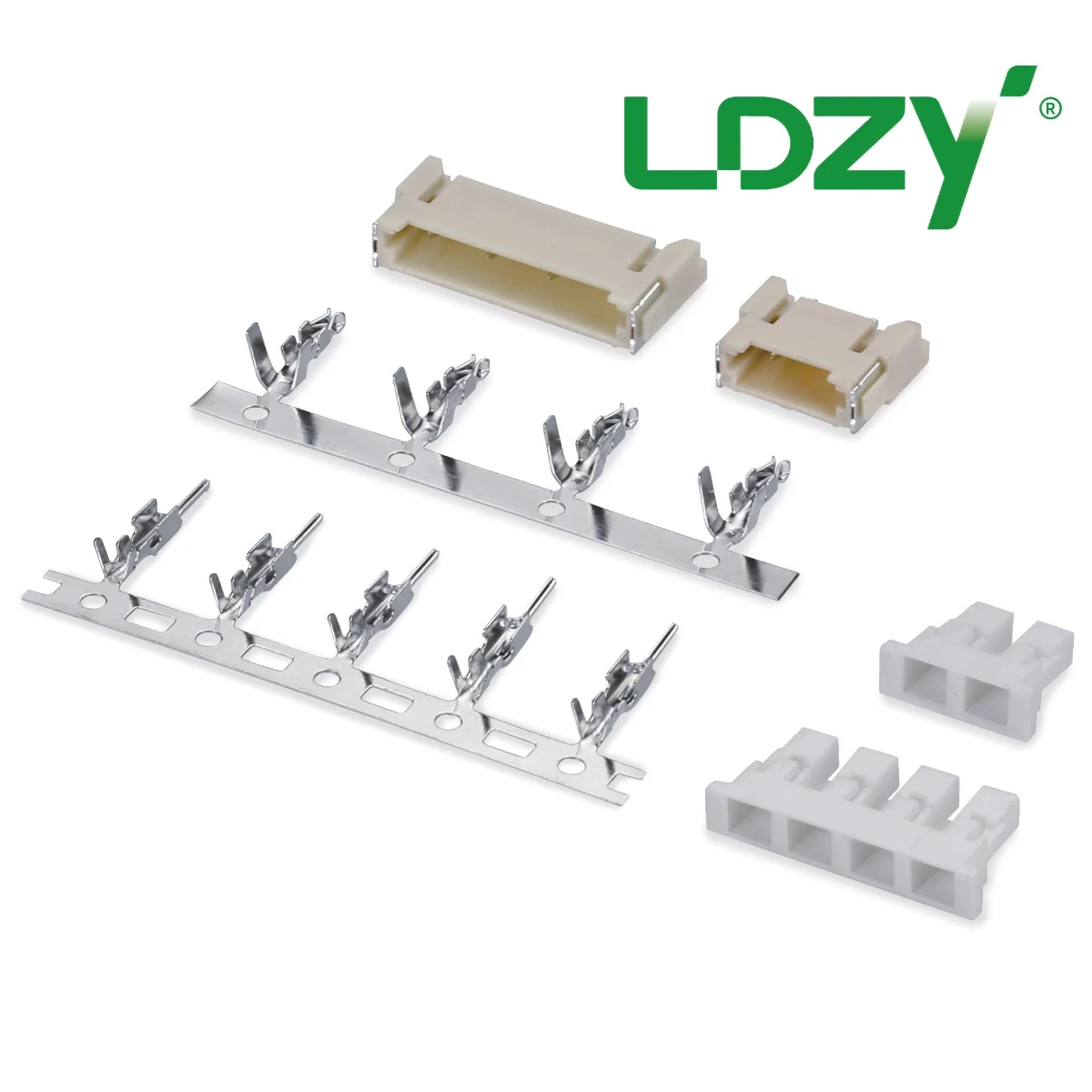

Model: A4000
Applications
trafficElectricity/Energysecurityindustry
1 / 2
1
2
Description
4.0mm pitch, wire-to-board, single row
Features
- Crimp terminals, suitable for automated wire harness processing
- Complies with RoHS environmental standards
- Compact in size, balancing current capacity and installation space
Specifications
Rated current:3A AC/DC
Voltage rating:250V AC/DC
Temperature range:-25°C~+105°C
Contact resistance:20MΩ max.
Pressure resistance:800V AC/min.
Insulation resistance:1000MΩ/min.
Similar Products
More (4)
1 / 2
1
2
Features
- Crimp terminals, suitable for automated wire harness processing
- Complies with RoHS environmental standards
- Compact in size, balancing current capacity and installation space
Specifications
Rated current:3A AC/DC
Voltage rating:250V AC/DC
